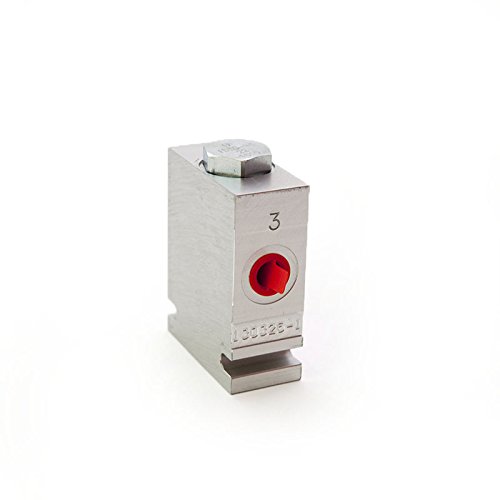

Hydraulic Pump Flow Divider
Product details
| Management number | 228359732 | Release Date | 2026/05/31 | List Price | US$54.10 | Model Number | 228359732 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
High performance, high pressure, multifunction, screw-in, cartridge-style, spool-type flow divider/combiner. Operation:In the dividing mode, it will divert input flow from port 3 to ports 2 and 4, based on the ratio specified, regardless of operating pressure. When the flow direction is reversed the valve will combine flows from 2 and 4 to port 3. Synchronizing flow is provided in both the dividing and combining modes at “bottomed” conditions in cylinder applications and at “stalled” conditions in motor applications. Features: Hardened parts for long life. Quiet, modulated response. Wide operating flow range. Synchronizing in dividing and combining modes. Floating cage — high installation torque. Industry-common cavity. Ratings: Operating Pressure: 345 bar (5000 psi) maximum Burst Pressure: 1103 bar (16000 psi) Flow Range Options: Input Flow: 4 - 19 lpm (1 - 5 gpm); Ratio: 50:50; Model Code: 22
- Flow Divider/Combiner
- SAE #6 Port Size
- 3000 PSI
| UPC | 765829427529 |
|---|---|
| ASIN | B01LYC55Q9 |
| Size | SAE #6 |
| Brand Name | Primary Mover |
| Unit Count | 1.0 Count |
| Valve Type | Flow Divider |
| Thread Size | SAE #6 |
| Thread Type | SAE #6 |
| Manufacturer | Primary Mover |
| Model Number | 22 |
| Material Type | Metal |
| Number of Ports | 3 |
| Maximum Pressure | 345 Bars |
| Outlet Connection Size | 0.25 Inches |
| Manufacturer Part Number | PF-FD |
| Smart Home Compatibility | Not Smart Home Compatible |
